Special Pet Firm Inspects 100% of Flexible Pouch Seals

The global pet food stuff market achieved virtually $97 billion in 2020 and is projected…

The global pet food stuff market achieved virtually $97 billion in 2020 and is projected to register a CAGR of 4.8% by way of 2026, in accordance to Reportlinker.com. But perhaps extra critical than the pure quantities is the notion of growing pet humanization—a change from pet ownership to parenting, a expanding bond that provides with it a willingness to devote more on animals.

In 2019, Specific Dog Corporation inaugurated an extremely-modern day pet food items factory with automatic processing and packaging.Image courtesy of EngilicoPrime-good quality, nutritional, flavorful pet meals is extra significant in this market place than ever. Exclusive Pet Firm, founded in Brazil two many years back, deployed a state-of-the-artwork generation facility in Santa Cruz do Rio Pardo in 2019 to increase its product portfolio and preserve up with the developing market. When it did so, an important need established forth by the corporation was to transfer to 100% inline seal inspection to safeguard the offers and the wet pet food items inside of.

In 2020, the pet foods maker made additional than 22 million deals, or much more than 2.2 million kg of damp pet foodstuff, in accordance to Output Supervisor Octávio Soberón. The foods is packaged in retort deals, like versatile pouches and aluminum trays. Sealing of those loaded packages is the culmination of a complex system and is critical to guard the food’s high-quality after it leaves the plant. Incompletely sealed deals, and packages with products spillover outside the house of the seal, both equally negatively effect the packaging procedures. Exposed merchandise benefits in contaminated equipment, as very well production and labor time lost to cleansing, guide sorting of poor packages, etc. If the poorly sealed offers leave the creation web page, the impact could be even better, with likely possibility for pricey product returns, contact backs and brand name destruction.

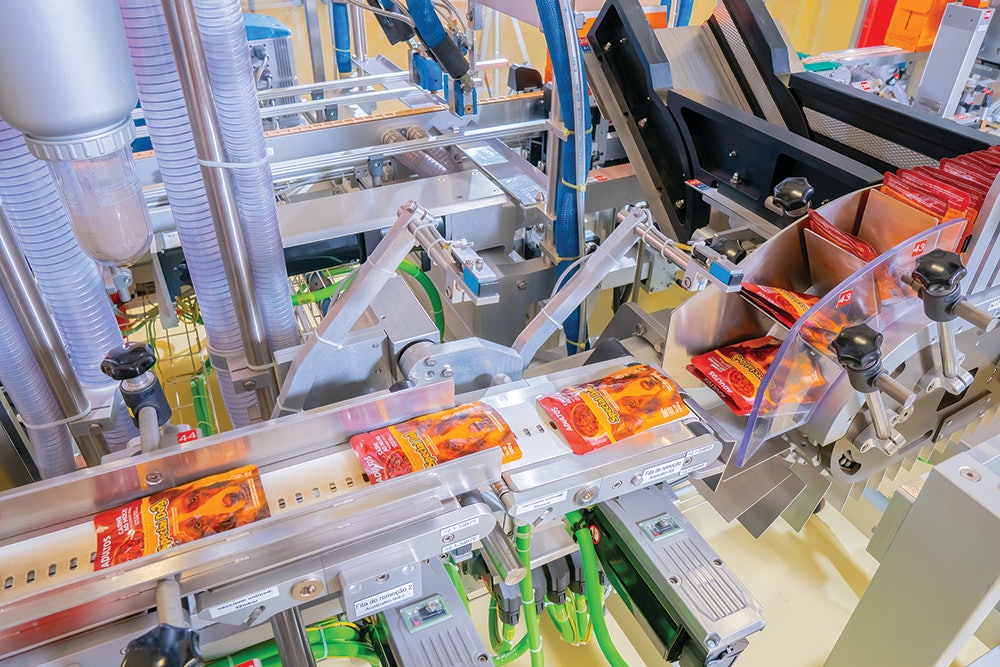

Thanks to a 100% inline seal inspection process, leak-free packages ensure product quality and leave no unwanted residue on machinery.Thanks to a 100% inline seal inspection method, leak-totally free deals be certain products quality and depart no undesirable residue on machinery.Photo courtesy of EngilicoThese ended up all essential factors in selecting a 100% inline seal inspection procedure. “The sealing of flexible deals is a significant period in the packaging procedure,” Soberón suggests. “Even with a leading-high-quality packaging equipment, terrible sealings could happen from time to time.” Faulty seals are generally brought on by wrinkles, folds, or products in the sealing space and lead to open or leaking deals.

Wet pet meals is primarily vulnerable to sealing concerns. Mainly because many glutinous sauces or gels are made use of in the recipes, it can easily adhere in or around the package’s sealing area for the duration of the filling approach.



Poorly sealed pouches are a big issue all through the sterilization method mainly because, when the pet foods is heated, it may well leak and pollute the autoclave. The disruption to output and person-hours for autoclave cleaning has a domino impact in value. Worse, if compromised offers are not detected, they can direct to reduced shelf existence, legal responsibility for health hazards, and wide recollects.

“Packaging is also dependable for creating positive the merchandise gets from the manufacturing unit, via transport and distribution, and on to retail and the property without having any decline to the integrity of the products,” Soberón suggests. “At the latter conclude, it may perhaps also be dependable for furnishing boundaries to oxidation and dampness migration, which can have an affect on palatability and the nutritional composition of the merchandise.”

100% seal inspection

For the packaging of the retort pouches, Distinctive Canine Enterprise has set up a multi-head weigher, followed by a high-velocity rotary filling equipment from Toyo Jidoki. To inspect the sealing of the retort pouches, Unique Dog Corporation extensively investigated the market place and in the end opted for the SealScope inline seal inspection technique from Engilico. “The SealScope is mounted in the sealing bars of the filling equipment,” Soberón says, outlining that the filling machine is also followed by an X-ray inspection system to detect steel contaminants.


    Find out about Engilico’s new hyperspectral detection technological innovation and other packaging technological innovation traits in an unPACKed with Packaging Environment podcast with Pat Reynolds.

SealScope’s solution to inline seal inspection is distinctive. Vibration sensors are retrofitted on the sealing jaws of the twin-lane rotating packaging machine at two stations in the carousel. The sensors measure the vibration reaction in the course of the closing of the sealing jaws and assess that to a reference design of the right way sealed packages. Product finding into the seal, or wrinkles or folds in the seal, can develop a change in the vibration. The deal is turned down when the deviation is increased than a consumer-defined restrict.

The sealing bars of the rotary packaging machine are equipped with SealScope sensors that detect product in seals, wrinkles and folds that cause leaking packages.The sealing bars of the rotary packaging equipment are geared up with SealScope sensors that detect item in seals, wrinkles and folds that trigger leaking offers.Picture courtesy of Engilico“The products evaluate and file the effects in each individual sealing bar, resulting in a common curve. If any debris or turned Teflon tape takes place, the impression will be afflicted, and the curve will be distinctive,” Soberón clarifies. “Thus, the software program compares the curves and, respecting the tolerances, accepts or rejects the pouch.”

This automatic, 100% inspection potential customers to rapid rewards. Every single one offer is inspected, so manual inspection can be substantially lowered. It is nonetheless a excellent producing follow (GMP) to double-look at the sealing manually, Soberón claims, but “with the SealScope inline, the variety of pouches inspected manually is considerably lower than a line with out this machine.” Random actual physical sampling involves destructive burst testing along with other human inspections, getting 5 to 6 minutes for every package.

By rejecting the faulty offers, the outgoing high-quality is straight away improved. “The non-harmful seal tests made right on the sealing bars drastically improved our line efficiency from prior guide inspection strategies,” Soberón says. Since putting in SealScope, the pet food stuff company has not been given a one grievance with regards to sealing problems, he provides.

Optimizing the packaging course of action

Because SealScope inspects each solution, it also serves as a continual checking system—not only for the sealing system but indirectly for the full packaging line. Any variance detected in the sealing system indicates systematic problems in the packaging system. Consumer-defined warnings prompt the operator to choose preventive corrective actions—cleaning the sealing station, changing the Teflon safety foils, and many others.—to stay clear of more procedure drift and preserve the equipment in ideal condition.

SealScope also allows optimization of packaging productiveness. Typically, packaging machines run both much too gradual or far too quickly, developing adverse effects on high quality. SealScope assists to decide the ideal equipment speed wherever generation output and offer high-quality are maximized.

With the ever-growing demand for superior-high quality wet pet foods, Particular Doggy Organization designs to even further extend its manufacturing capacity, according to Soberón, who suggests the manufacturing unit was designed with enlargement in head. “The bottleneck is the filling equipment, which is functioning at 120 ppm,” he suggests. “The programs for the in close proximity to potential are to put in another filling machine, which is going to double the recent potential.”

With the new filling equipment also will come a second SealScope. “For the installation of the new line, Engilico’s SealScope system is heading to be there, for guaranteed,” Soberón suggests.
